Drive In Pallet Racks

Drive in racks system is frequently used for a great number of pallets of similar SKU or item. It’s ideal solution to increase the utilization of your warehouse space. The system storage space can be used up to 75%-85% more availably than selective pallet racking.

Drive in racking also often used in cold storage or freezer racking which per cubic meter has expensive cost require maximum use of warehouse space for storing goods



There are two types of drive in racking system available:

Drive in racking: base on FILO principle, only one access aisle

Drive through racking: base on FIFO principle, pallets can be loaded or retrieved from both side



Advantage:

• High density storage 一 Stored more pallets per cubic meter than conventional pallet racking system

• Low stock rotation 一  Perfectly suitable for seasonal goods and fluctuating stock demand

• Used for bulk storage of identical products and cold storage

• Suitable for easily damaged or fragile loads, which cannot be stacked one on top of the other


See related project case:

Drive-in pallet racking with shuttle cart in New Zealand


Specification:

Upright 80x70, 90x70, 105x70,   120x85mm
Hole Pitch 76.2mm,50mm,50.8mm
Box Beam size80x50, 90x50, 100x50, 110x50, 120x50,   130x50, 140x50, 160x50
Upright Thickness1.8/2.0/2.5/2.75/3.0 mm
Beam Thickness1.8/2.0/2.5/2.75/3.0 mm
Frame HeightUp to 12000mm
Beam LengthUp to 6000mm
Capacity per layer500-4000KG
FinshPowder coating (different color   acceptable) or hot dip galvanized on request




FAQ:

Please inform us of the following information for quick racking solution:



Length of rack or bays wide

Depth of rack or pallet deep

Level of rack

Height of each level

Pallet size

Loading capacity of per pallet

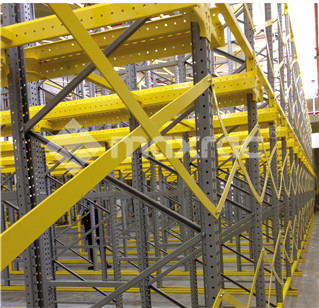

Bracing Bracing

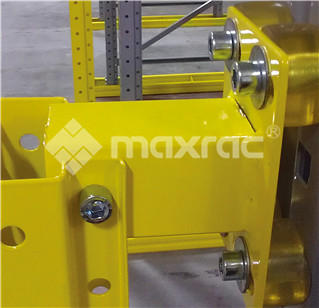

Anti-collision bolt Anti-collision bolt

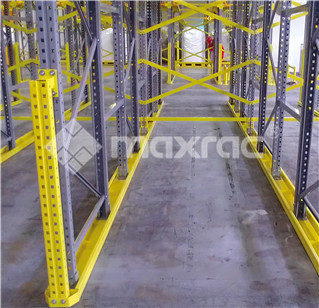

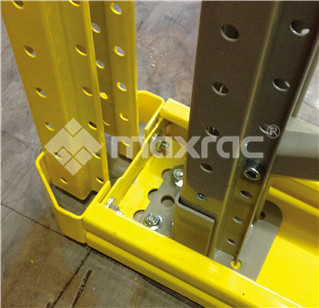

Anti-collision upright Anti-collision upright
Anti-collision upright Anti-collision upright

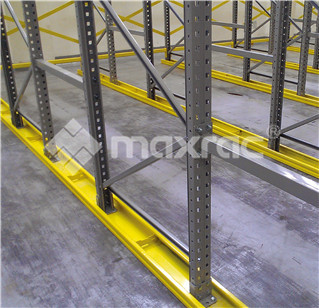

Flooring rail Flooring rail

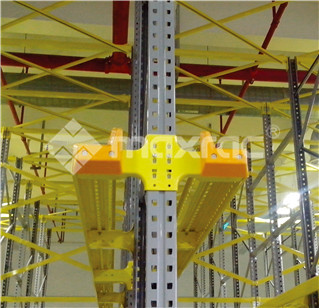

Pallet rail Pallet rail
