There are many types of medium and heavy shelves. Cantilever shelves are one of them. Cantilever shelves are mainly suitable for long goods or circular items and irregular-sized items, such as wood, pipes, profiles, cables, and so on. Cantilever racks are the ideal solution for these bulky, scattered, and unmanageable special items. Below, Warehouse Storage Racks Manufacturer will explain the structure of cantilever racks for heavy shelves in shelves.
Characteristics of cantilevered shelves: suitable for storing long materials, ring materials, plates, pipes and irregular goods. Cantilever rack columns mostly adopt H-shaped steel or cold-rolled steel, cantilever adopts square tube, cantilever shelves use drawing cold-rolled steel or H-shaped steel, cantilever and column adopt plug-in type or bolt connection type, base and column adopt bolt connection , The base is made of cold-rolled steel or H-shaped steel. The cantilever can be single-sided or double-sided. The cantilever rack has the characteristics of stable structure, good load capacity and high space utilization.
Cantilever shelf use: mostly used in machinery manufacturing industry and building materials supermarkets. After adding shelves, it is especially suitable for warehouses with small space and low height, convenient management, wide field of vision, and higher utilization rate than ordinary shelves. Cantilevered shelves are connected by connecting rods. The connecting rods are generally made of rectangular tubes. In order to increase safety and stability, a flat iron back is added to the connecting rod, and a special puller can be used to tightly fix the column piece.

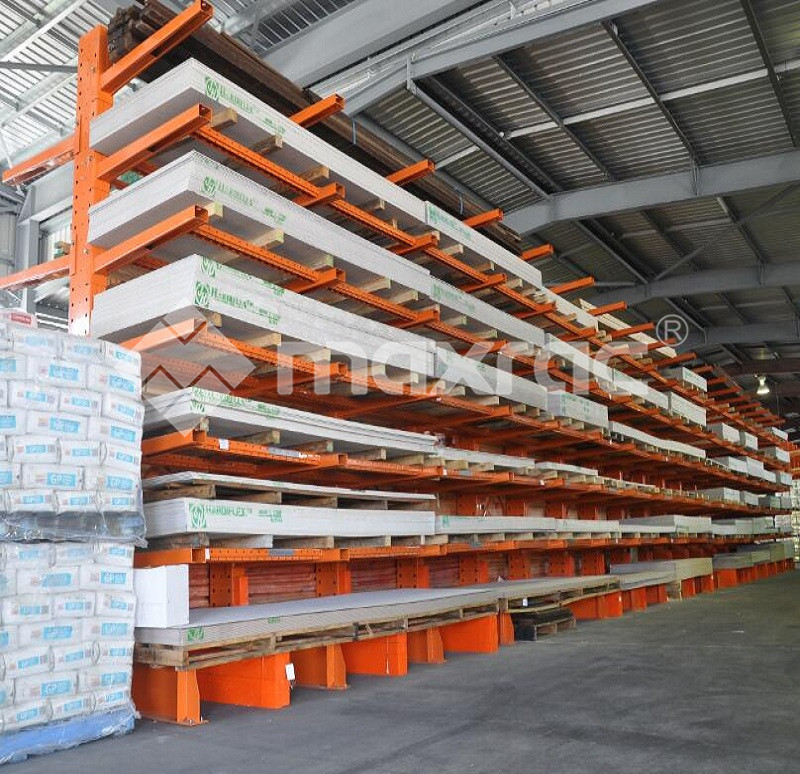

Heavy Duty Cantilever Racking
All cantilevered rack components are semi-finished products after production and will be spray-molded in the final process. Before spraying, perform shot blasting to remove oil and rust, and then spray. Packed and shipped after completion.
Cantilever shelves include Heavy Duty Cantilever Racking, medium cantilever shelves and light cantilever shelves. The cantilever of the cantilever shelf can be single-sided or double-sided. The structure of the cantilever shelf is stable and strong, the load capacity is good, and the space utilization rate is high. The columns and bases of cantilever shelves generally adopt C-section steel or H-section steel and cold-rolled section steel according to the requirements of the bearing. Even the shelf columns can be used as columns in the form of columns. Cantilever racks have bottom plates under the columns to fix them. If the load is large, they can be reinforced with triangular reinforcing plates. The base of the cantilever shelf has sealing plates at both ends and a reinforced version at the side for carrying reinforcement, so that the cantilever shelf is more stable when carrying goods.
Cantilever racks generally use distance pipes, cold-rolled sections, distance pipes, clasp pipes, C-section steel or H-section steel, and bolts are used to connect the cantilever to the column. The carrying capacity of the cantilever shelf is on the cantilever. To prevent the cantilever from being bent by the article when it is being carried, the end of the cantilever is generally tilted up slightly, ranging from 2 degrees to 4 degrees. Excessive placement of the article is a hindrance. On the contrary, it does not work. Such an angle is the most ideal state.
Cantilever racks not only have columns, but the main components of the base and the cantilever must have reinforcement rods. Tie rods are generally round tubes, angle steel and square tubes plus flower basket screws with ear tabs between the two cantilever columns to support the cantilever shelf. The overall stability of the cantilever shelf is higher, the bearing capacity is more stable, and the safety factor is greater.
The goods on cantilever shelves are generally accessed by forklifts or manually. The height of the cantilever shelf is usually between 1.5-6 meters, the length of the cantilever is within 1.5 meters, and the load of each arm is usually within 1000KG. Cantilever shelves are mostly used in the machinery manufacturing industry and building materials supermarkets. Cantilever shelves with shelves are especially suitable for warehouses with small space and low height, convenient management, wide field of view, and higher utilization rate than ordinary shelves.
The above is the cantilever rack structure introduced by Radio Shuttle Racking Supplier. I hope it can help everyone.
