Characteristics Of Cantilever Shelves

11. 26, 2021

Due to the increasing number of physical manufacturing products, the location of the warehouse is particularly precious. How to maximize the use of space to achieve the best storage requirements? For companies with longer products and raw materials, cantilevered shelves are the most suitable. Why do you say that? The following is a detailed analysis by Warehouse Racking Manufacturer.


Cantilevered shelves are an important form of shelf. Cantilevered shelves are suitable for storing long materials, ring materials, plates, pipes and irregular goods. The cantilever can be single-sided or double-sided. The cantilever rack has the characteristics of stable structure, good carrying capacity and high space utilization.


Cantilever shelves wood frame columns mostly use H-shaped steel or cold-rolled steel, cantilever beams use square tube, cold-rolled steel or H-shaped steel, cantilever and column are connected by plug-in or bolt, and the base and column are bolted, the base is cold Rolled section or H section. Cantilever shelves are suitable for storing long materials, ring materials, plates, pipes and irregular goods. The cantilever beams are mostly H-beams or cold-rolled steels, the cantilever beams are square tubes, cold-rolled steels or H-beams, and the cantilever and columns are inserted. Or use bolts to connect to the column, and the base is made of cold rolled steel or H-shaped steel. Goods can be entered by forklift, moving vehicle or manually. Shelf height is usually less than 2.5 meters (up to 6 meters if reachable by forklift). Cantilever length is within 1.5m, and the load of each arm is usually less than 1000 kg. This shelf is mainly used in machinery manufacturing and building materials supermarkets. After adding shelves, it is especially suitable for small spaces, low-height warehouses, easy management, large fields of view, and ordinary shelves.


Compared with similar racks, it has higher utilization efficiency. According to the carrying capacity, it can be divided into three types: light weight, medium weight and Heavy duty Cantilever Racking. Cantilever shelves are the ideal solution for storing bulky, loose or other special products. Cantilevered shelves have one arm and two arms, effectively storing wood, pipes, strips and other similar products. Cantilever racks are formed by installing external cantilevers on traditional brackets, and are special racks for long racks.

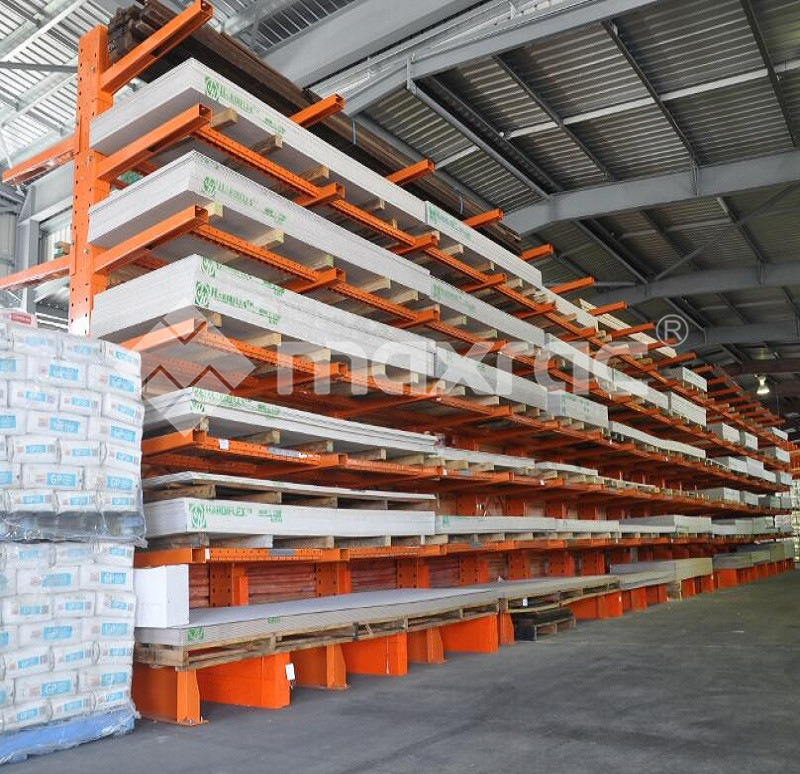

Heavy duty Cantilever Racking


Heavy duty Cantilever Racking


Cantilevered shelves are a special type of shelf type. It is constructed by installing cantilever on the column. So, is there a limit to the height of cantilever shelves? What can be the highest?


Light Duty Cantilever Racking supplier can tell everyone here that the height of cantilever racks is limited, generally controlled below 6 meters, depending on the choice of storage method. When manual loading and unloading are mainly used, the shelf height is controlled within 2.5 meters; while when forklift loading and unloading is mainly used, the shelf height is controlled within 6 meters. At the same time, the length of the cantilever is controlled within 1.5 meters, and the load of each arm is within 1000kg. Of course, the specific size and load are selected according to customer characteristics and requirements, and the warehouse structure, material characteristics, and warehouse environment may affect the final result.


The characteristics of the above cantilever shelves, as well as the height limit of the cantilever shelves, hope to help everyone. Please contact us for a quote.
